Technical parameter
| Key technical parameters | ||
| Project | Unit | Value |
| Maximum theoretical delivery volume | m3/h | 180 |
| Maximum concrete outlet pressure | MPa | 11.3 |
| Pumping frequency | min-1 | 26 |
| Concrete cylinder diameter x stroke | mm | φ260*2100 |
| Structural form | / | 70X-6RZ |
| Maximum material distribution (height/radius/depth) | m | 69.1/63.8/52.1 |
| Outrigger span (front x rear x longitudinal) | mm | 12450*16940*14020 |
| Rated working pressure | MPa | 42 |
| Product spectrum | ||
| Pump truck models | Chassis brand | Emission standards |
| ZLJ5460THBKF 62X-6RZ | Sinotruk Shandeka | National VI |
| ZLJ5460THBSF 62X-6RZ | Scania | National VI |
| ZLJ5460THBJF 62X-6RZ | liberation | National VI |
| ZLJ5460THBBF 62X-6RZ | Benz | National VI |
Products Description

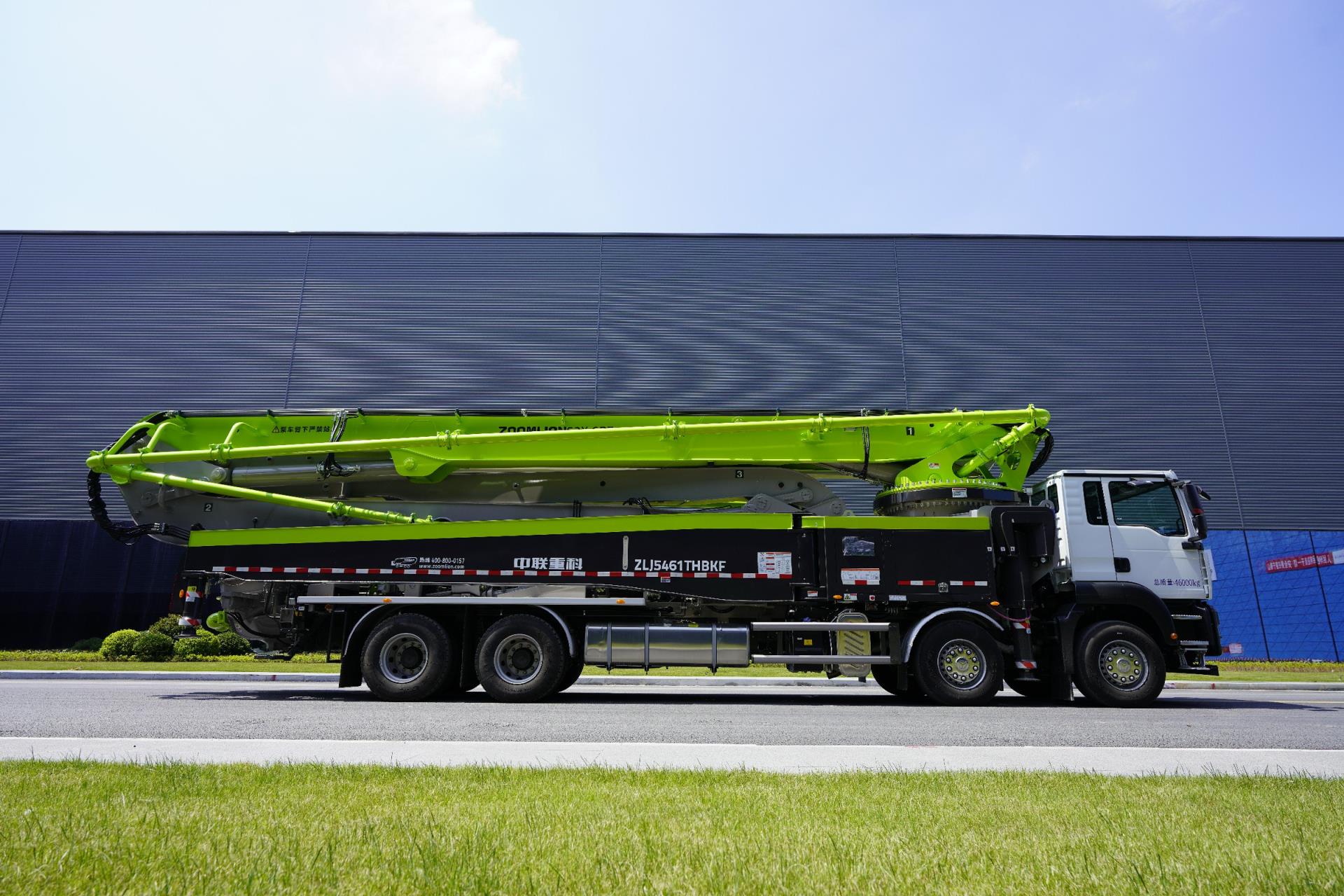

Second hand zoomlion Four-axle 62M Sinotruk Shandeka National VI Pump Truck
Tongmiduan Fabric Factory
Wider range of fabrics
1.The industry has a wider range of fabrics in the same meter segment, with a maximum fabric radius of 1.6 meters and a maximum fabric depth of 1.1 meters.
2.Classic bionic 6-section arm, easy to operate, simulates the joint mechanism of human arm, flexible fabric
No valve block design
1.No high- or low-pressure switching is required, making pumping easy. The system consumes 2-4% less energy than competitors, saving approximately 30,000 yuan in fuel annually.
2.Easy maintenance and low failure rate
Low operating costs
Functional independent dual oil tanks, high system cleanliness, 30% reduction in hydraulic oil consumption, doubled hydraulic oil life, and can save approximately RMB 10,000 in operating costs per year
Small arm vibration
The boom adopts active vibration reduction technology in all working conditions and postures, and the end amplitude can be reduced to 0.2 meters, with good stability.
High reliability of the main structure
1.After rigorous testing on a professional dynamic load fatigue test bench, the fatigue life of the main structure of the boom and base has been verified to be 8 years or 450,000 cubic meters.
2.Through-axle design and external connecting rod design result in small lateral shaking, high strength and rigidity, and safety and reliability
Fast arm extension and easy pipe cleaning
1.The boom's extension and retraction time is significantly shortened, 15% faster than the industry average, resulting in high construction efficiency.
2.The boom's end hose is located at the rear of the vehicle, making cleaning the delivery pipe quick and easy without extending the boom.
Water tank is rust-free
Equipped with an engineering plastic water tank to prevent rust, extend service life and save worry
