Technical parameter
| Key technical parameters | ||
| Project | Unit | Value |
| Maximum theoretical delivery volume | m3/h | 180 |
| Maximum concrete outlet pressure | MPa | 11.3 |
| Pumping frequency | min-1 | 26 |
| Concrete cylinder diameter x stroke | mm | φ260*2100 |
| Structural form | / | 70X-6RZ |
| Maximum material distribution (height/radius/depth) | m | 69.1/63.8/52.1 |
| Outrigger span (front x rear x longitudinal) | mm | 12450*16940*14020 |
| Battery charging method | / | Engine power generation, DC charging pile fast charging |
| Parking air conditioning | / | Rated power 1kw |
| Model No | Chassis Brand | Emissions Standard |
| ZLJ5461THBJF 62X-6RZ | liberation | National VI |
Products Description

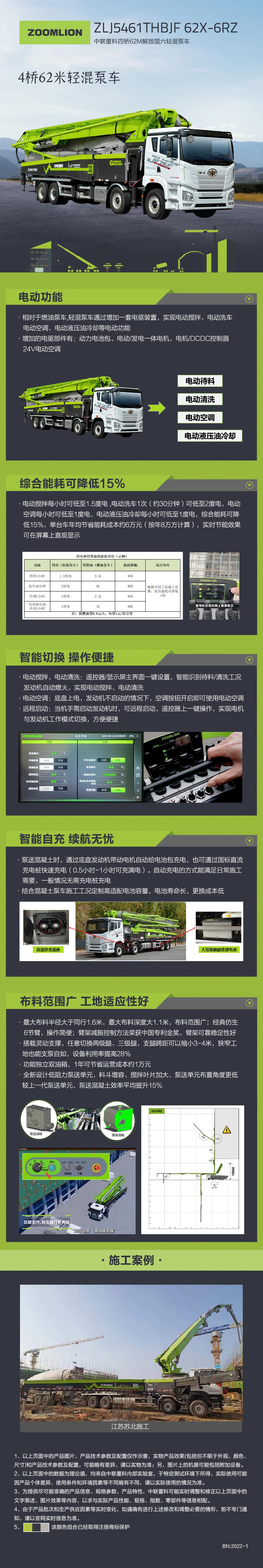

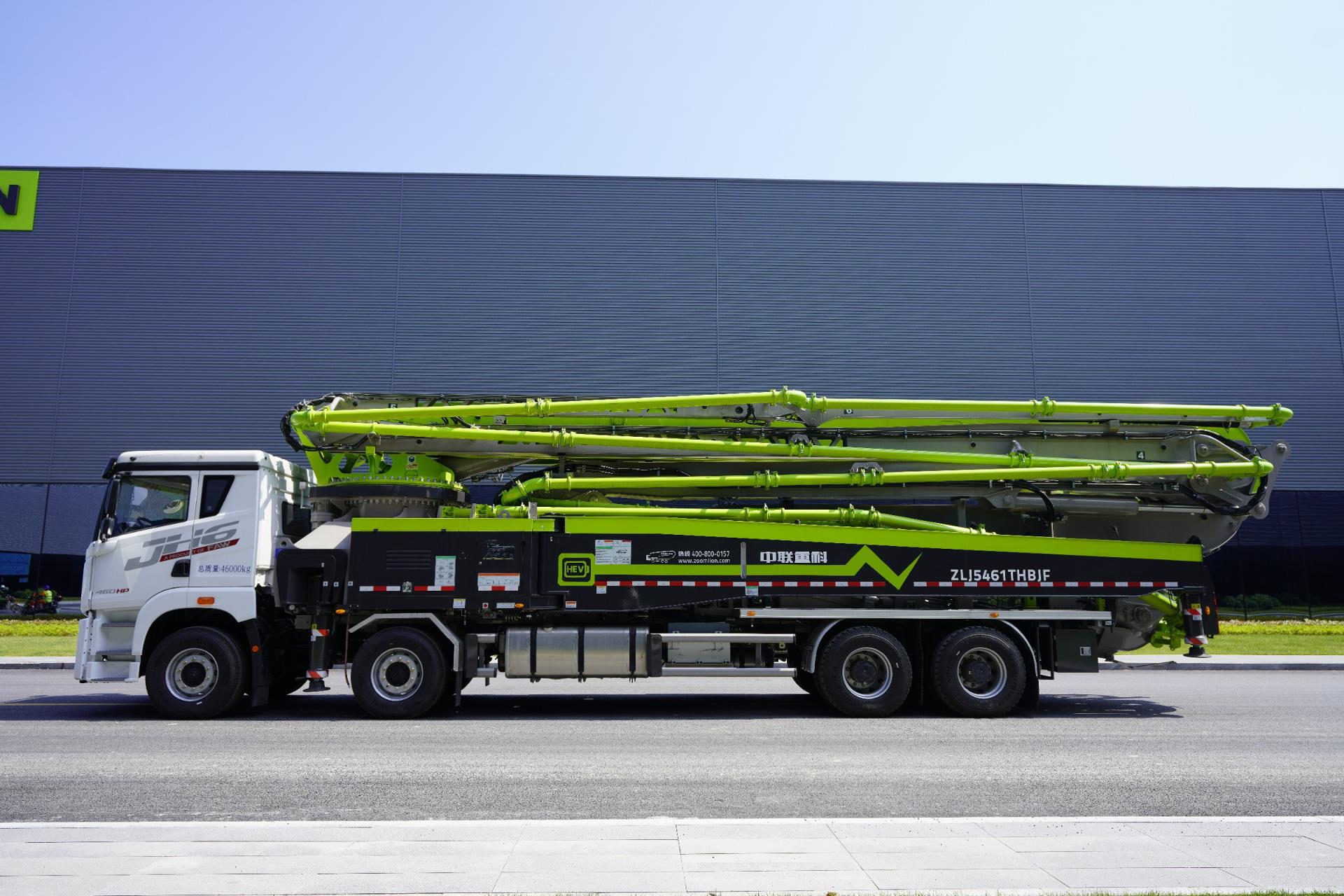

Second hand zoomlion Four-axle 62M Jiefang National VI light hybrid pump truck
4-axle 62m mild hybrid pump truck
Electric function
1.Compared with fuel pump trucks, mild hybrid pump trucks have an additional electric drive device to achieve electric functions such as electric stirring, electric car washing, electric air conditioning, and electric hydraulic oil cooling.
2.The additional electric drive components include: power battery pack, electric/generator integrated motor, motor/DCDC controller, 24V electric air conditioner
Comprehensive energy consumption can be reduced by 15%
Electric stirring can be reduced to 1.5 kWh per hour, electric car washing (about 30 minutes) can be reduced to 2 kWh per hour, electric air conditioning can be reduced to 1 kWh per hour, and electric hydraulic oil cooling can be reduced to 1 kWh per hour. The overall energy consumption can be reduced by 15%, and the average annual energy cost of a single vehicle can be saved by about 60,000 yuan (calculated based on 80,000 cubic meters per year). The real-time energy saving effect can be intuitively displayed on the screen
Intelligent switching, convenient operation
Electric stirring and electric cleaning: one-button setting on the remote control/display main interface, intelligent identification of the waiting/cleaning working condition, and automatic engine shutdown to achieve electric stirring and electric cleaning
Electric air conditioning: When the chassis is powered on and the engine is not started, the electric air conditioning can be used by turning on the air conditioning button
Remote start: When the operator needs to start the engine, it can be started remotely with one button on the remote control to switch between motor and engine working modes, which is convenient and easy
Smart self-charging, worry-free battery life
1.When pumping concrete, the chassis engine drives the motor to automatically charge the battery pack, and it can also be quickly charged through a national standard DC charging pile (0.5 hours to 1 hour to fully charge). The automatic charging method can meet the needs of daily construction, and generally no charging pile is required.
2.Customized high-adaptation battery capacity based on the concrete pump truck construction conditions, long battery life and low replacement cost
Wide range of fabrics and good adaptability to construction sites
1.The maximum spreading radius is 1.6 meters greater than that of its peers, and the maximum spreading depth is 1.1 meters greater, with a wide spreading range; the classic bionic 6-section arm is easy to operate; the boom vibration reduction control method won the China Patent Gold Award, and the boom is reliable and stable.
2.Equipped with flexible support, it can switch between two-stage legs and three-stage legs at will. The leg span can be shortened by 3-4 meters, so the pump can be supported freely even in narrow construction sites, and the equipment utilization rate is increased by 28%.
3.Functional independent dual fuel tanks can save about RMB 10,000 in operating costs per year
4.The newly designed low-resistance pumping unit has an increased hopper capacity, larger mixing blades, and a lower pumping unit layout angle. Compared with the previous generation of pumping units, the concrete pumping efficiency is increased by an average of 15%.
